Wireless Dolby® Headphone System





2.4G Wireless Dolby® Headphone System

General Description
The Wireless Dolby® Headphone System allows user to experience a realistic, true-to-life, 5.1 channel surround sound over a pair of wireless stereo headphone without compromising on audio quality and performance.

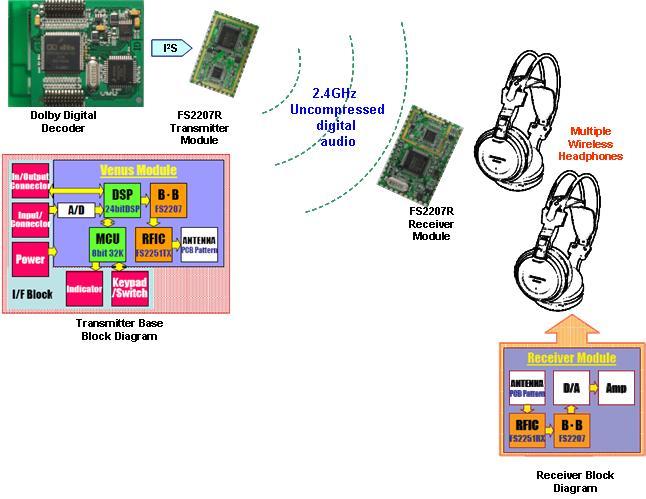

The base station consists of a DSP decoder,  FS2207R transmitter module and an audio interface board. The DSP Decoder decodes Dolby AC3,  ProLogic II, DTS, and AAC and converts into 2 channel PCM audio via Dolby HP technology.


This system is designed to transmit wireless uncompressed stereo audio and Dolby surround sound effects to any headphone integrated with FS2207R module.





True Dolby Digital 5.1 Surround Sound Experience



Features

  • Advanced 2.4GHz GFSK wireless link with 8 selectable channels

  • Supports 48KHz 16-bit, 2-channels, Uncompressed digital audio transmission

  • Supports I2S Digital Input at 32KHz to 48KHz.

  • Decode Dolby AC3/ Pro Logic II / DTS / AAC

  • Multiple input sources (Analog, Coaxial and SPDIF)

  • Coexist with many 2.4Ghz devices

  • Low power consumption (Longer battery life)

  • Auto power off or standby sequence

  • Broadcast mode (support multiple wireless headphones)
