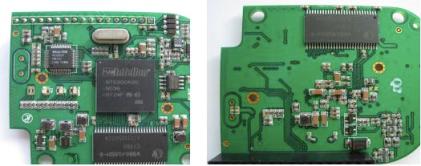

APOLCO™-200ETH-SM

APOLCO™-200ETH is an Ethernet over power line bridge adapter fully compatible with HomePlug AV standard and capable of delivering up to 200Mbps over the power line. It implements a 128-bit AES Link Encryption with key management for secure power line communications. It does not require a PC to generate new encryption key.


Key Features

• Maximum 200 Mbps over power line.

• HomePlug AV compliance.

• 128-bit AES Link Encryption with key management for secure power line communications.

• Switch based encryption key generation without need to connect to a PC.

• Communication distance over power line up to 200 metre.

• Thick walls or blind points no more an issue.

• Co-existence with HomePlug 1.0 nodes.

• Supports IGMP managed multicast IP transmission.

• Implements windowed OFDM, precise channel adaptation and noise mitigation based on patented line synchronization techniques for high data reliability under noisy media conditions.

• Implements both TDMA and CSMA/CA access protocols for optimum MAC performance.

Enhanced Quality of Service (QoS) features: eight levels of prioritized random access, contention-free access, and segment and packet bursting.

• Intelligent dynamic channel adaptation maximizes throughput under harsh channel conditions.

• Enhanced LED indication of power line besides normal LED indications.

• 2-30 MHz band.

• Supports auto crossover detection for Ethernet connectivity.

• IEEE 802.3/802.3u compliant.

• Supports IEEE 802.3u clause 28.

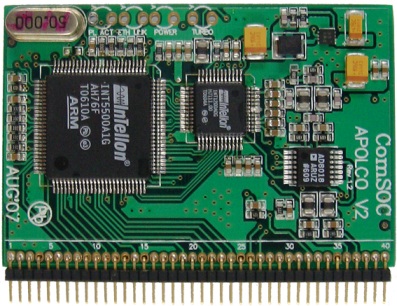

APOLCO™-85ETH-SM

The APOLCO™-85ETH-SM is 85Mbps over the power line simple module design to help user system application design. This module support Ethernet based system application design. It can help to save the system development time and cost.

APOLCO™-85ETH-SM can help your high speed power line data communication for audio, visual and general data transmission application based on your existing house power lines. It is satisfied by Homeplug 1.0.1 standard and has one channel of standard MII interface to service standard IEEE 802.3 Ethernet application.

Key Features

• Satisfied with Homeplug 1.0.1 standard

• Support one channel MII interface for Ethernet application

• 42MHz to 20.9MHz band

• Support 56-bit DES Encryption to setup the secured network

• Support maximum 85Mbps data speed over the power lines with ranges of up to 200 meters based on Point-to-Point. Thick concrete walls and a multi-storied house is no longer an issue.

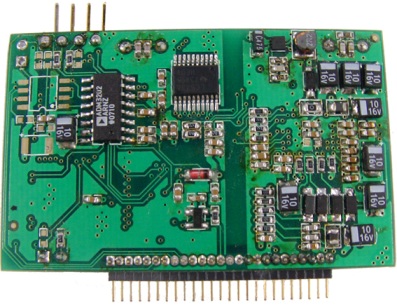

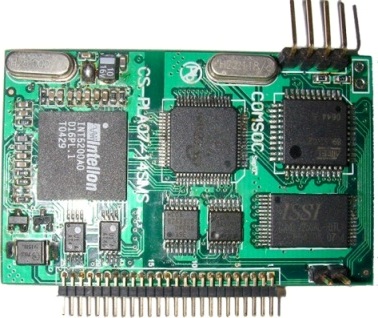

APOLCO™-14MIM

APOLCO™-14MIM provides auto detection feature for interface service mode as it has use one RJ-45 connector for Ethernet and RS-232/485.


Key Features

• Support Maximum 14Mbps Data transmission Speed over the Power Line

• Support IEEE802.3 / IEEE802.3uHome Plug Power line Alliance Specification 1.0/1.0.1

• Support 10/100Mbps auto crossover Ethernet

• Support RS-232 interface with maximum 115.2K baud rates

• Support RS-485 interface with 115.2K baud rates

• Support random key generation algorithm for data encryption and decryption to establish the user own secured network set-up – user optional

• Support Automatic Detection for interface service mode selection to Ethernet or RS-232/485 Support Automatic Enrolling Service to establish communication network for user convenience. No need set up for master and client service of APOLCO. Also it can service together with random key generation Algorithm – It is only for Auto-Enrolling version.

• Support 56-bit DES using cipher block chaining to allow for secure data transmissions – User optional

• Support one DC power output for user application with DC5.4V@max1.3A/h

• User friendly 3 LED indication
